Emporia Level 2 EV Charger Review: Cost & Value Breakdown

The Emporia Ecosystem: More Than Just a Charger

When upgrading to a Level 2 home charging setup, most EV owners focus solely on the charger itself. However, the Emporia Level 2 EV Charger takes a radically different approach by integrating deeply with whole-home energy monitoring. Rather than just acting as a dumb pipe delivering electrons to your vehicle, the Emporia ecosystem—anchored by the Emporia Vue energy monitor—treats your EV as a dynamic, manageable load within your home's broader electrical footprint.

For cost-conscious EV drivers, this raises a critical question: Does the added complexity and upfront cost of an energy monitoring system actually pay for itself? In this comprehensive cost and value breakdown, we will analyze the hardware expenses, installation variables, utility savings, and long-term ROI of the Emporia Level 2 EV charger to determine if it is the smartest financial move for your garage.

Upfront Hardware and Installation Costs

To understand the value proposition, we first need to look at the raw numbers. The Emporia EV charger is a 48-amp, 240-volt unit capable of delivering up to 11.5 kW of power. However, to unlock its signature features—like tracking exact charging costs and optimizing for solar production or off-peak rates—it must be paired with the Emporia Vue whole-home energy monitor.

Hardware Comparison Table

At roughly $719 for the complete hardware bundle, the Emporia setup is slightly more expensive than a standalone JuiceBox or ChargePoint. However, you are effectively getting a premium Level 2 charger and a dedicated home energy audit tool for that price.

Installation Variables: NEMA 14-50 vs. Hardwired

Installation costs will heavily dictate your day-one ROI. The Emporia charger ships with a NEMA 14-50 plug, which is convenient for portability. However, the National Electrical Code (NEC) requires that continuous loads (like EV charging) not exceed 80% of a circuit's rated capacity. Therefore, a 50-amp breaker and 14-50 outlet will only allow you to charge at 40 amps (9.6 kW), leaving 8 amps of the charger's potential on the table.

To achieve the full 48 amps (11.5 kW), you must hardwire the unit to a 60-amp breaker. Hardwiring typically costs between $500 and $1,200 depending on the distance from your main electrical panel to the garage, while a simple 14-50 outlet installation might only cost $300 to $600. Furthermore, hardwiring eliminates the risk of the outlet overheating during multi-hour charging sessions, a common issue with high-draw NEMA outlets.

The True Value Proposition: Whole-Home Energy Monitoring

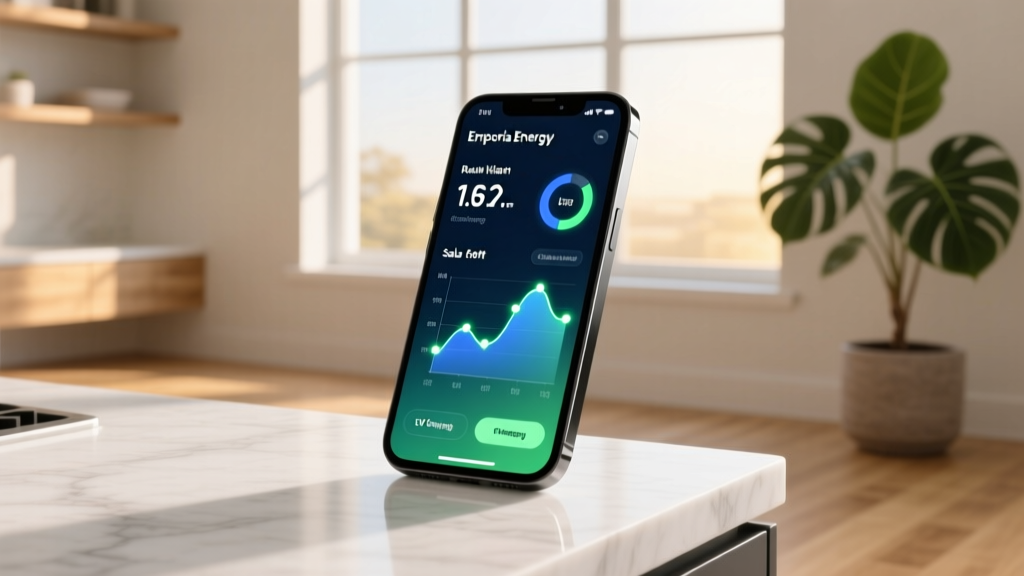

The core differentiator for Emporia is the Vue monitor. By installing Current Transformer (CT) clamps directly onto the main service lines and individual circuits in your breaker panel, the Vue app provides real-time, circuit-level data.

Why does this matter for EV owners? According to the Alternative Fuels Data Center, one of the primary benefits of home charging is the ability to leverage off-peak electricity rates. However, many utility bills lump all household usage together, making it nearly impossible to know exactly how much your EV is costing you versus your HVAC system or water heater. The Emporia app isolates the EV charger circuit, giving you a precise, down-to-the-penny cost of every charging session.

Solar Integration and Load Shedding

If you have rooftop solar, the value multiplier increases exponentially. The Emporia app can be configured to prioritize 'Excess Solar' charging. This means the charger will dynamically adjust the amperage sent to your EV based on the real-time surplus energy your panels are generating, ensuring you are fueling your car for virtually free rather than pulling from the grid. Competing chargers require expensive third-party integrations or proprietary solar inverters to achieve this level of seamless load balancing.

Maximizing ROI with Time-of-Use (TOU) Rates

The most significant way the Emporia ecosystem pays for itself is through Time-of-Use (TOU) rate optimization. Many utility companies charge drastically different rates depending on the time of day. The U.S. Department of Energy highly recommends smart charging during off-peak hours to alleviate grid strain and reduce consumer costs.

The TOU Savings Calculation

Let us break down the math for a typical EV driver commuting 300 miles per week in a vehicle that averages 3 miles per kWh (requiring 100 kWh per week).

• Peak Rate (4 PM - 9 PM): $0.28 per kWh
• Off-Peak Rate (Midnight - 6 AM): $0.08 per kWh

If you plug in your car when you get home at 5 PM and charge on a standard timer (or forget to set one), your weekly fuel cost is $28.00. Over a year, that is $1,456.

By using the Emporia app's smart scheduling features to restrict charging strictly to off-peak windows, your weekly fuel cost drops to $8.00. Over a year, that is $416.

Annual Savings: $1,040.
At this rate, the entire $719 Emporia hardware ecosystem pays for itself in under 9 months purely through TOU rate arbitrage. After that first year, the system is actively saving you money.

Offsetting Costs: Federal Tax Credits and Utility Rebates

When calculating your final out-of-pocket cost, you must factor in available incentives. The IRS Alternative Fuel Vehicle Refueling Property Credit (often referred to as the 30C tax credit) allows taxpayers to claim a credit of up to 30% of the cost of purchasing and installing a home EV charger, capped at $1,000 per year.

Because the Emporia Vue energy monitor is integral to the smart-charging and load-management capabilities of the EV charger, many tax professionals and EV advocates argue it can be bundled into the installation receipt for the 30C credit (though you should always consult a CPA). If your total hardware and hardwiring installation costs $1,500, a 30% federal tax credit yields a $450 refund, drastically lowering your break-even point.

Additionally, many local utilities offer instant rebates ranging from $250 to $500 for installing Wi-Fi-enabled smart chargers that participate in demand-response programs. The Emporia charger is frequently on the approved lists for these utility rebates due to its verified load-shedding capabilities.

Pros and Cons of the Emporia Level 2 Setup

Pros

• Unmatched Data Granularity: True circuit-level cost tracking separates EV spend from household baseline usage.
• Solar Optimization: Native 'Excess Solar' charging mode eliminates the need for third-party smart home bridges.
• Future-Proof Hardware: 48-amp capability ensures compatibility with high-capacity EVs like the Ford F-150 Lightning or Rivian R1T.
• No Subscription Fees: Unlike some competitors, Emporia does not charge a monthly premium to access advanced app features or historical data.

Cons

• Complex Installation: Installing the Vue CT clamps inside the main breaker panel is intimidating and generally requires a licensed electrician, adding to labor costs.
• App Learning Curve: The sheer volume of data in the Emporia app can be overwhelming for casual users who just want to plug in and walk away.
• Bulky Control Box: The physical charger unit is slightly larger and more utilitarian in design compared to the sleek aesthetics of the ChargePoint Home Flex.

Final Verdict: Is the Emporia Level 2 Worth the Investment?

If you view an EV charger merely as a gas pump replacement, the Emporia Level 2 might seem like overkill. However, from a strict cost and value perspective, it is arguably the most financially intelligent Level 2 charger on the market.

The upfront premium of purchasing the Vue monitor alongside the charger is quickly eclipsed by the actionable data it provides. By empowering you to ruthlessly optimize your Time-of-Use rates and seamlessly integrate with rooftop solar, the Emporia ecosystem transforms your EV from a monthly expense into a masterclass in home energy efficiency. For data-driven drivers, solar panel owners, and those on aggressive TOU utility plans, the Emporia Level 2 EV charger is not just a purchase; it is a high-yield investment.
