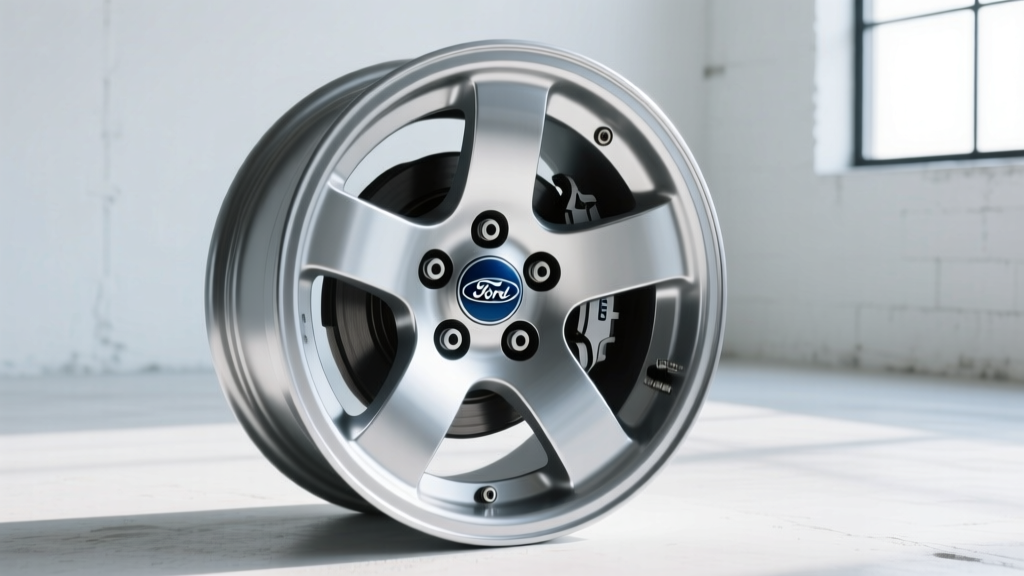

Understanding the 2009 Ford F-150 Bolt Pattern
The 2009 Ford F-150 uses a 6x135mm bolt pattern (also written as 6x5.31 inches). This means six lug nuts arranged on a circle with a 135-millimeter diameter. This bolt pattern has been standard on Ford's full-size trucks since 1997 and continues through current-generation F-150s, including the electric F-150 Lightning.
For EV conversion builders and wheel upgrade shoppers, knowing the exact bolt pattern is just the starting point. Proper fitment requires matching several additional specifications to ensure safe operation and avoid clearance issues with brake calipers, suspension components, and fender liners.
Complete Wheel Specifications: 2009 F-150
| Specification | Value |
|---|---|
| Bolt Pattern | 6x135mm (6x5.31") |
| Center Bore | 87.1mm |
| Lug Nut Thread Size | M14 x 2.0 |
| Stock Wheel Diameter | 17" - 20" (trim dependent) |
| Stock Wheel Width | 7.5" - 8.5" |
| Offset Range (OEM) | +40mm to +44mm |
| Lug Nut Torque Spec | 150 lb-ft (203 Nm) |
The 87.1mm center bore is critical—wheels with a smaller bore won't physically fit over the hub, while wheels with a larger bore require hub-centric rings to prevent vibration at highway speeds. Never rely on lug nuts alone to center a wheel; this creates dangerous stress concentrations.
Why Bolt Pattern Matters for EV Conversions
The 2009 F-150 has become a popular donor platform for electric vehicle conversions due to its body-on-frame construction, abundant aftermarket support, and relatively simple chassis layout. When builders swap in electric motors and battery packs, wheel and tire selection directly impacts:
- Range efficiency: Heavier wheels increase rotational mass, requiring more energy to accelerate and maintain speed
- Regenerative braking performance: Lighter wheels allow regen systems to capture more kinetic energy during deceleration
- Suspension geometry: Incorrect offset changes scrub radius and affects steering feel, especially problematic when adding 500-1000 lbs of battery weight
- Brake clearance: Many EV conversions retain stock brakes or upgrade to larger rotors, requiring wheels with adequate caliper clearance
For builders targeting maximum range, lightweight forged wheels in the OEM 17" or 18" diameter with low-rolling-resistance tires typically deliver the best efficiency. The 6x135mm pattern limits wheel selection compared to the more common 6x5.5" (6x139.7mm) pattern found on GM and Toyota trucks, but manufacturers like Method Race Wheels, Fuel Off-Road, and American Racing offer compatible options.
Wheel Fitment for F-150 Lightning Upgrades
The 2022-2026 Ford F-150 Lightning uses the same 6x135mm bolt pattern as the 2009 model, making this specification relevant for both vintage restoration and modern EV owners. Lightning owners seeking wheel upgrades face additional considerations:
- Weight rating: The Lightning weighs 6,000-6,500 lbs depending on trim—wheels must be rated for this load
- Range impact: Ford's EPA testing shows up to 15% range reduction with larger/heavier wheel options
- Tire pressure monitoring: Aftermarket wheels must accommodate TPMS sensors or trigger dashboard warnings
- Aero covers: Some Lightning trims include wheel aero covers that improve highway efficiency by 2-3%
The Lightning's extended-range battery models (EPA-rated 320 miles) are particularly sensitive to wheel weight and aerodynamics. Testing by EPA fueleconomy.gov shows the standard-range Lightning achieves 230 miles with 18" wheels but drops to 220 miles with optional 20" wheels due to increased mass and rolling resistance.
Measuring and Verifying Bolt Pattern
If you're working with an unknown wheel or verifying fitment, measure the bolt pattern directly:
- Count the lugs: The 2009 F-150 has six lug nuts per wheel
- Measure diameter: For 6-lug patterns, measure center-to-center between two lugs directly across from each other (not adjacent lugs)
- Convert to metric: 5.31 inches = 135mm
- Verify with calipers: Digital calipers provide the most accurate measurement, especially on corroded or damaged hubs
Never assume bolt pattern based on visual similarity—the difference between 6x135mm and 6x139.7mm (6x5.5") is only 4.7mm, but wheels will not safely mount on the wrong pattern. Even if lug nuts thread on, the wheel won't be properly centered, creating catastrophic failure risk at highway speeds.
Offset and Backspacing: The Hidden Fitment Variables
Bolt pattern alone doesn't guarantee fitment. Offset (measured in millimeters) determines how far the wheel sits inboard or outboard from the hub mounting surface:
- Positive offset: Mounting surface toward the outside face (OEM F-150: +40 to +44mm)
- Negative offset: Mounting surface toward the brake side (common on lifted trucks, creates "deep dish" look)
- Zero offset: Mounting surface at wheel centerline
For EV conversions adding battery weight, maintaining OEM offset or going slightly more positive (+45 to +50mm) helps preserve steering geometry and reduces stress on wheel bearings. Negative offset wheels push the tire outward, increasing leverage on suspension components and accelerating wear—a particular concern when adding 800+ lbs of battery mass.
Backspacing (measured in inches from the mounting surface to the inner wheel edge) provides an alternative measurement method. The 2009 F-150 typically uses 5.5" to 6" backspacing. Use this formula to convert: Backspacing = (Wheel Width ÷ 2) + (Offset in inches) + 0.25".
Torque Specifications and Safety
Proper lug nut torque is non-negotiable for safety. The 2009 F-150 requires 150 lb-ft (203 Nm) on all six lug nuts, tightened in a star pattern to ensure even clamping force. Under-torqued lugs can work loose during driving; over-torqued lugs stretch studs and risk breakage.
For EV conversions, re-torque lug nuts after the first 50-100 miles of driving, then every 5,000 miles or during tire rotations. Electric motors deliver instant torque from zero RPM, placing different stress patterns on drivetrain and wheel components compared to internal combustion engines.
Wheel Options for 6x135mm Applications
| Wheel Type | Weight Range | Best Use Case | Price Range |
|---|---|---|---|
| Cast Aluminum (OEM-style) | 28-32 lbs | Daily driving, budget builds | $120-$200 per wheel |
| Flow-formed Aluminum | 24-28 lbs | Performance EV conversions, range optimization | $250-$400 per wheel |
| Forged Aluminum | 20-25 lbs | High-performance builds, maximum efficiency | $500-$800 per wheel |
| Steel (OEM replacement) | 35-40 lbs | Work trucks, winter wheels, budget repairs | $60-$100 per wheel |
For EV conversions prioritizing range, every pound of unsprung weight (wheels, tires, brakes) requires approximately 2-3 watt-hours per mile additional energy at highway speeds. A set of four forged wheels saving 8 lbs each versus cast aluminum can improve range by 1-2%—meaningful on a 200-mile conversion targeting 250+ miles.
Frequently Asked Questions
Will 6x5.5" wheels fit a 2009 F-150?
No. The 6x5.5" (6x139.7mm) pattern used on GM and Toyota trucks is 4.7mm larger than the Ford 6x135mm pattern. While the difference seems small, wheels will not center properly and create dangerous vibration and stress. Use only 6x135mm wheels.
Can I use wheel adapters to change bolt pattern?
Wheel adapters exist but are not recommended for daily driving or high-load applications. Adapters add unsprung weight, change offset, and create additional failure points. For EV conversions carrying heavy battery packs, the safety risk outweighs any convenience benefit.
What's the largest tire I can fit on stock 2009 F-150 wheels?
Stock 17" wheels typically clear up to 285/70R17 tires without rubbing. Larger tires require aftermarket wheels with appropriate offset or suspension modifications. For EV conversions, larger/heavier tires reduce range—test fit carefully before committing.
Do F-150 Lightning wheels fit the 2009 model?
Yes, the 2022-2026 Lightning uses the same 6x135mm bolt pattern and similar offset. However, Lightning wheels are designed for 6,000+ lb vehicle weight and may be overkill for lighter conversion builds. Verify center bore (87.1mm) and load rating match your application.
Where can I find 6x135mm wheels for my EV project?
Major retailers like Tire Rack, Discount Tire, and Summit Racing stock 6x135mm wheels from brands including Method, Fuel, American Racing, and Pro Comp. For lightweight forged options optimized for EV efficiency, check specialty manufacturers like HRE Wheels or Rotiform. Always verify load rating exceeds your vehicle's gross weight.
