Tesla Model 3 Long Range: Powertrain Snapshot and Charging Profile

The 2026 Tesla Model 3 Long Range AWD pairs a ~75 kWh usable NMC battery with dual motors producing a combined 346 horsepower and an EPA-estimated 363 miles of range. On the highway at 70 mph in mild weather, expect roughly 300–320 real-world miles; drop to 250–280 miles in sub-freezing conditions where cabin heating and battery resistance take a toll. The 0–60 mph time sits at 4.2 seconds, and efficiency lands around 132 MPGe combined per fueleconomy.gov.

Charging the Model 3 Long Range efficiently requires understanding three things: the difference between kW (power, or how fast energy flows) and kWh (energy, or how much the battery stores), the connector ecosystem, and the electrical capacity of your home. This guide walks through each layer with exact figures so you can budget an installation, plan road trips, and compare fueling costs against a gas sedan.

Charging Levels Explained: kW, Miles Per Hour, and Real Charge Times

EV charging falls into three tiers. The critical literacy point: kW measures power (the rate of energy delivery, like water pressure), while kWh measures energy (the total stored in the battery, like gallons in a tank). A 250 kW charger does not deliver 250 kW continuously — the charge curve tapers as the battery fills, especially above 80% state of charge (SoC) to protect cell longevity.

Real-World Charge Time Examples for the Model 3 Long Range

• Level 1 (120V, 1.4 kW): 0–100% takes roughly 54 hours — impractical for daily use but adequate for plugging in overnight when you only need 30–40 miles back.
• Level 2 (240V, 48A / 11.5 kW): 10–80% in approximately 5.5 hours; a full overnight session replenishes even a nearly depleted pack.
• Tesla Supercharger V3/V4 (250 kW peak): 10–80% in ~25 minutes when the battery is preconditioned. Peak rate holds roughly to 40–50% SoC, then tapers — 80–100% can add another 20+ minutes.
• 50 kW DCFC (older public stations): 10–80% in ~75 minutes. Avoid these for road trips when faster chargers are available.

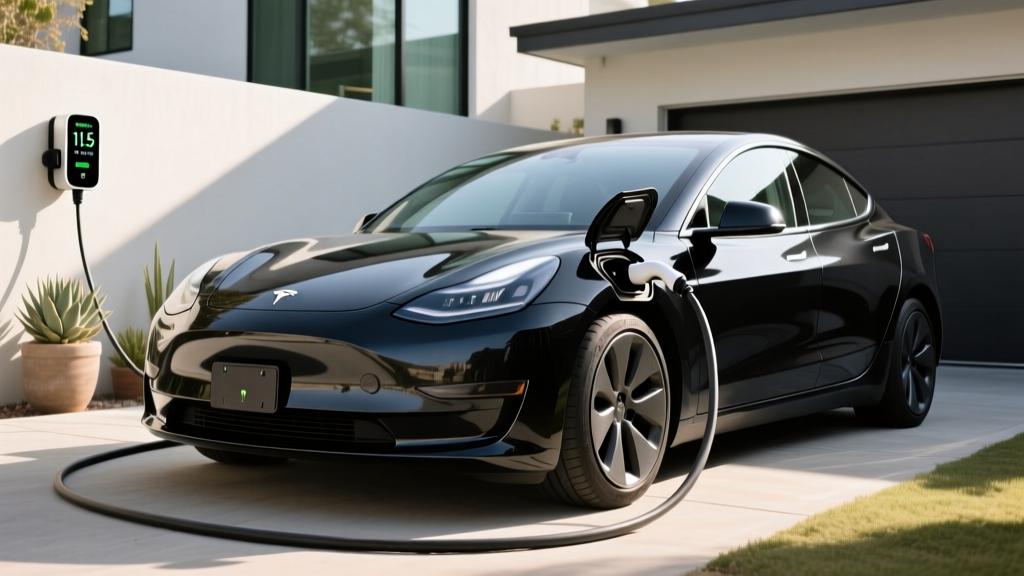

Home Level 2 Installation: Electrical Requirements, Permits, and Cost Breakdown

A Level 2 home charger is the single highest-impact upgrade for EV ownership. For the Model 3 Long Range to accept its maximum 11.5 kW, you need a 240V circuit rated at 60 amps (the National Electrical Code requires circuits to be sized at 125% of continuous load, so a 48A charger needs a 60A breaker).

What Electrical Upgrades Might You Need?

Most modern homes with a 200-amp service panel can accommodate a 60A EV circuit without a panel upgrade. Older homes with 100A service, or homes already running heavy loads (electric range, dryer, HVAC, hot tub), may need a service upgrade to 200A — a significant expense. A licensed electrician will perform a load calculation per NEC Article 220 before recommending a circuit size.

The IRS §30D alternative fuel vehicle refueling property credit can offset up to 30% of home charger hardware and installation costs (capped at $1,000) for eligible taxpayers in qualifying census tracts. Check current-year eligibility on irs.gov, as census-tract requirements and income phase-outs apply.

Connector Compatibility: NACS, CCS, and Adapters

As of 2025–2026, the North American Charging Standard (NACS, now formalized as SAE J3400) has become the dominant connector in North America. Tesla vehicles ship with a native NACS port and access the Supercharger network directly. Nearly every other major automaker — Ford, GM, Rivian, Hyundai, Kia, BMW, and others — has transitioned to NACS on new vehicles, with CCS1 being phased out on new models.

For daily home charging, you'll either hardwire a NACS wall connector or use a 240V NEMA 14-50 outlet with the Tesla Mobile Connector. The hardwired route supports the full 48A / 11.5 kW; the NEMA 14-50 outlet is limited to 40A continuous (9.6 kW), which still adds ~34 miles per hour — more than enough for overnight replenishment.

Cost to Charge: Home vs. Public vs. Gas Comparison

The cost advantage of home charging is where EV ownership economics shine. Public DC fast charging narrows the gap, and in some regions with high electricity rates, it can approach gas-car fueling costs on a per-mile basis.

At home off-peak rates, the Model 3 Long Range costs roughly $0.02 per mile to fuel — about one-sixth the cost of a 30 MPG gas sedan at $3.40/gallon. Even at Supercharger rates, you're paying roughly $0.07/mile, still a 40% savings over gasoline. The key takeaway: home charging access is the single biggest factor in EV operating cost savings. If you can install Level 2 at home, the economics strongly favor the EV.

Recommended Home Charging Equipment for the Model 3 Long Range

Below are three chargers that match the Model 3 LR's 11.5 kW onboard charger capability. All use the NACS connector natively (no adapter needed).

Safety, Code, and Installation Best Practices

EV charging is a continuous high-draw electrical load — the NEC classifies it as a continuous load requiring 125% circuit sizing. Cutting corners here risks breaker trips, wire overheating, or fire. Key requirements:

• Dedicated circuit: Your Level 2 charger must have its own breaker — no sharing with dryers, ovens, or HVAC.
• GFCI protection: NEC 2023 and later require GFCI protection for 240V EV outlets (NEMA 14-50). Hardwired chargers with built-in ground-fault protection may not require a separate GFCI breaker, but local code varies — your electrician will confirm.
• Outdoor rating: If installing outside, the charger must carry a NEMA 4 or NEMA 4X rating for weather resistance. All three chargers above meet this standard.
• Permit and inspection: Most jurisdictions require an electrical permit for a new 240V circuit. The inspection verifies wire gauge, breaker sizing, and grounding — it's not optional, and skipping it can void homeowner's insurance coverage for electrical fires.
• Wire gauge: A 60A circuit requires 6 AWG copper (THHN in conduit) or 4 AWG aluminum. Undersized wire is the most common code violation in DIY installs.

Always hire a licensed electrician. The NHTSA and NFPA both document EV-related electrical incidents tied to improper home wiring — proper installation eliminates this risk almost entirely.
